Aug 2016 – Dec 2016/Hardware Prototype

Pluggable Magnetic Connector

  • Hardware Prototype
  • Siemens, Bangalore, India
Partner
Siemens
Period
Aug 2016 – Dec 2016
Focus
Hardware Prototype

Key outcomeDecreased the time needed to wire and test industrial motor management devices

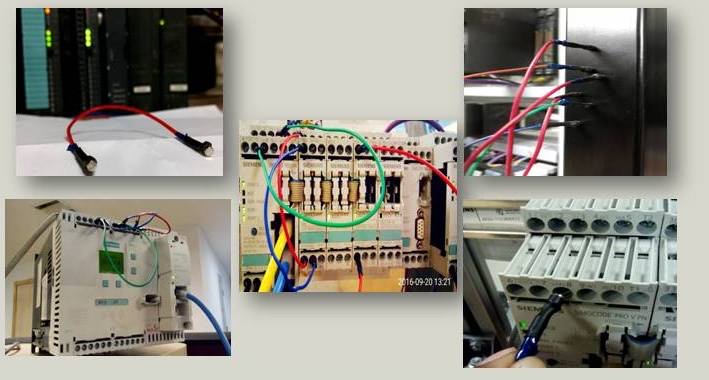

Collage of photos showing pluggable magnetic connector prototypes wired to Siemens industrial motor management devices for faster test-bench setup
Pluggable magnetic connector prototypes wired to test-bench devices.

Context

Testing industrial motor management devices required manually wiring device inputs and outputs, which slowed down every test cycle.

Inputs

  • Device input/output wiring requirements
  • Existing test-bench connection hardware

Approach

  • Designed and developed magnetic connector prototypes to quickly connect device inputs and outputs for testing

Outcomes

  • Decreased the time needed to wire and test industrial motor management devices
